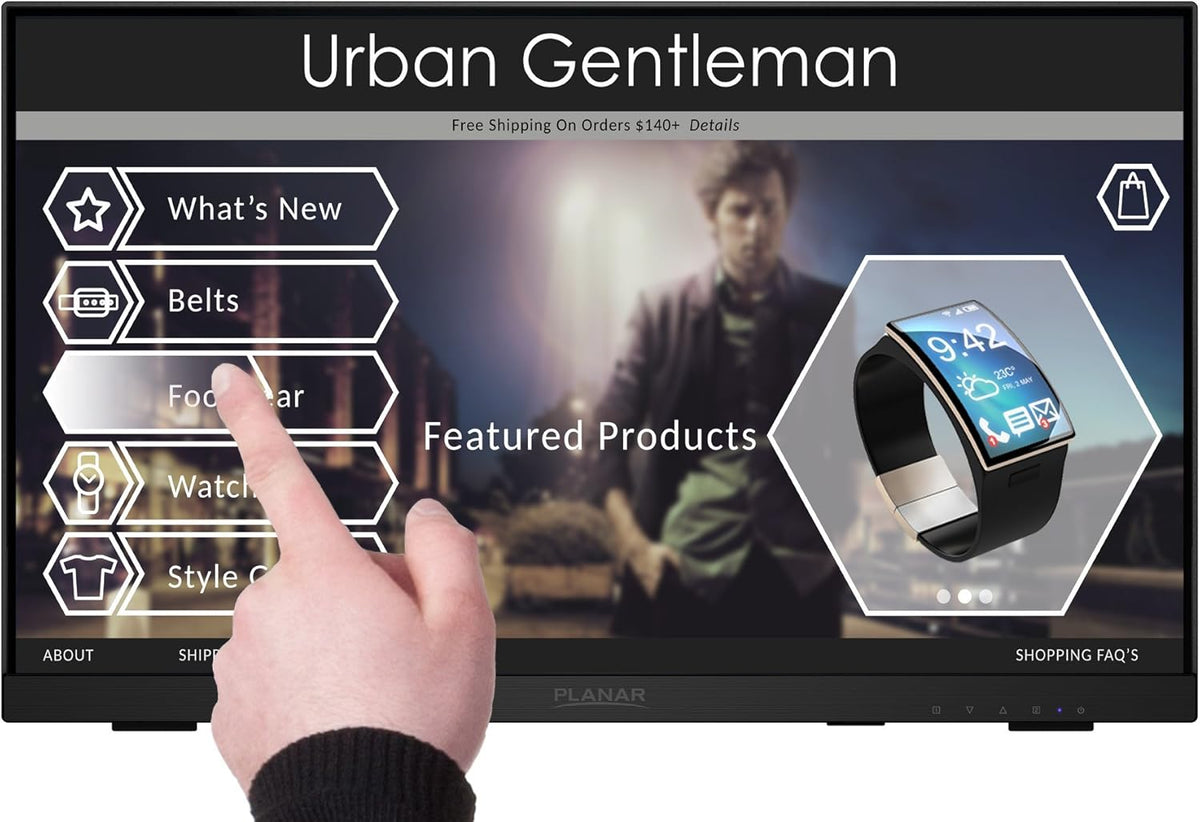

22" LED LCD Full HD Touch Screen Monitor R796037
Sale price
$23.99
Regular price $103.94
Skip to product information
Featuring Projected Capacitive touch technology which registers up to 10 simultaneous touch points, the monitor is extremely fast and accurate for the office worker when scanning through emailsThe Planar Helium Stand can be easily tilted from 15° to 70° - quickly moving the user from passive viewing to full touch screen interaction. Compatible with Windows 7, 8, 10 - HID Compliant and no drivers needed for basic touchscreen operationFor more integration flexibility, the Planar PCT2235 multi-touch monitor boasts multiple video inputs – DisplayPort, HDMI and VGA - and integrated speakersThe Planar PCT2235 includes Planar's leading Customer First 3-Year Warranty, including a free 2-day advance replacement. Operating Temperature: 0 to 40°COS Compatibility- Windows 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation. Power requirements 100-240 VAC, 50/60 HzKindly use USB plugin that is required for touch on this unit (HDMI/VGA only shows the screen, and USB is required for touch interactivity).
22" LED LCD Full HD Touch Screen Monitor R796037
Sale price
$23.99
Regular price $103.94
Shipping calculated at checkout.
Planar PCT2235 22 Touch screen monitor with helium stand. Using projected capacitive technology, Planar Helium PCT2235 registers up to 10 simultaneous touch points. With this interactive technology, the Planar Helium PCT2235 is extremely fast and accurate when browsing the web, scanning emails or editing photos. The Planar Helium PCT2235 is designed to take full advantage of Microsoft Windows 10, which works seamlessly with multi-touch technology.
| PCT2265 22" Dual Hinge Stand | PCT2235 22" Helium Stand | PCT2435 24" Dual Hinge Stand | PCT2485 24" Helium Stand | PCT2785 27" Helium Stand | |
|---|---|---|---|---|---|
| Display Technology | Edge-lit LED LCD | Edge-lit LED LCD | IPS Edge-Lit LED LCD | Edge-lit LED LCD | Edge-lit LED LCD |
| Viewable Size | 21.5" diagonal, 18.77" horizontal, 10.56" vertical | 21.5" diagonal, 18.77" horizontal, 10.56" vertical | 23.8" diagonal, 20.75" horizontal, 10.56" vertical | 23.6" diagonal, 20.52" horizontal, 11.54" vertical | 27" diagonal, 23.54" horizontal, 13.23" vertical |
| Viewing Angle, horizontal and vertical | 178° | 178° | 178° | 178° | 178° |
| Tilt Range | -5° to +90° | +15° to +70° and Flat | -5° to +90° | +15° to +70° and Flat | +15° to +70° and Flat |
| Response Time (typ.) | 18 ms | 14 ms | 14 ms | 14 ms | 14 ms |
| Display Resolution | 1920 x 1080, Full HD | 1920 x 1080, Full HD | 1920 x 1080, Full HD | 1920 x 1080, Full HD | 1920 x 1080, Full HD |
| Video Inputs | VGA, HDMI, DVI-D | VGA, HDMI, DisplayPort | VGA, HDMI | VGA, HDMI, DisplayPort | VGA, HDMI, DisplayPort |
| Audio Output | 2 speakers, 2W/ch | 2 speakers, 2W/ch | 2 speakers, 2W/ch | 2 speakers, 2W/ch, Earphone | 2 speakers, 2W, Earphone |
| Dimensions (W x H x D) | 19 x 12 x 2" (490 x 299 x 48mm) | 21 x 15 x 9" (522 x 385 x 239mm) | 21 x 14 x 9" (541 x 355 x 239mm) | 23 x 14 x 2” (572 x 347 x 45mm) | 27 x 17 x 2” (673 x 419 x 0mm) |
| Display Weight | 15 lbs. (7kg) | 8 lbs. (4kg) | 12 lbs. (5kg) | 14 lbs. (6kg) | 20 lbs.(9kg) |
